Product Overview
The b-Pellucid Mini micro ATX computer chassis is designed for compact and efficient builds, available in sleek black or pristine white finishes. Its minimalist aesthetic complements any workspace while providing optimal airflow and accessibility for components. This chassis supports micro ATX motherboards and features ample space for storage drives, ensuring a versatile solution for both gaming and professional setups.
Specifications and Features:
- Product Name: b-Pellucid Mini
- UPC Code: 850055230132(Black) / 850055230149 (White)
- Product Number: BG30132 (Black) / BG30149 (White)
- Case Type: Micro ATX
- Chassis Thickness: 0.9 mm (=0.35 in)
- Motherboards: Micro-ATX / ITX
- Dimension (Internal): 378(W) x 200(D) x 322(H) mm (=14.88 x 7.87 x 12.67 in)
- Dimension (Overall): 395(W) x 200(D) x 332(H) mm (=15.55 x 7.87 x 13.07 in)
- Front Panel: ABS + Mesh
- Side Panel (Left): Steel + Tempered Glass
- Side Panel (Right): Steel
- Drive Bay HDD (3.5"): 1
- Drive Bay SSD (2.5"): 1 + 1 (Using the HDD Space)
- I/O Port: USB3.0 + Type C + Mic / HD Audio
- Fan (Front): 1 x 120mm (Depends on PSU Installed Position)
- Fan (Top): 2 x 120mm (Not Included)
- Fan (Rear): 1 x 120mm (Not Included)
- Fan (Bottom): 2 x 120mm (Not Included)
- CPU Cooler Height: Max. 165mm (=6.49 in)
- VGA Card Length: Max. 355mm (=13.97 in)
- Water Cooling Top: 240mm (=9.44 in)
- Expansion Slots: 4
- PSU Compatibility: PSU length max 160mm (=6.29 in) (PSU Not Included)
See It in Action:

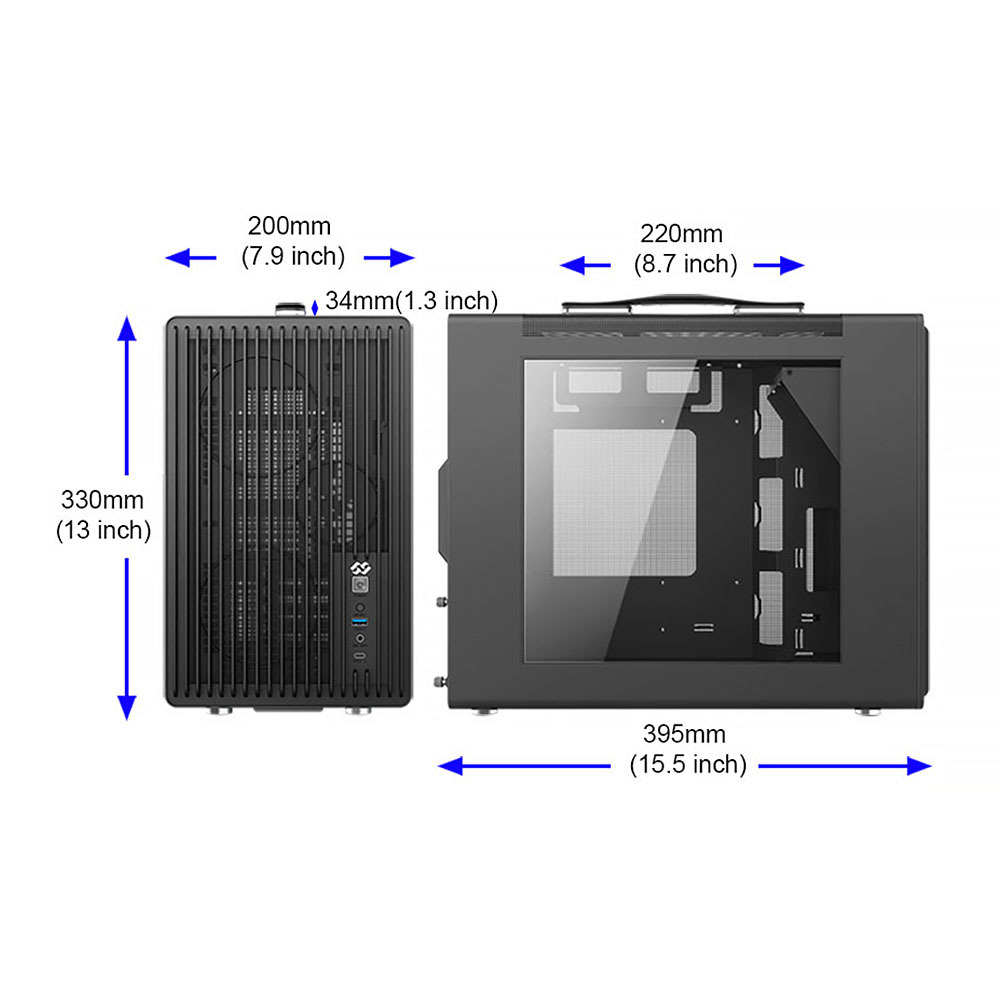

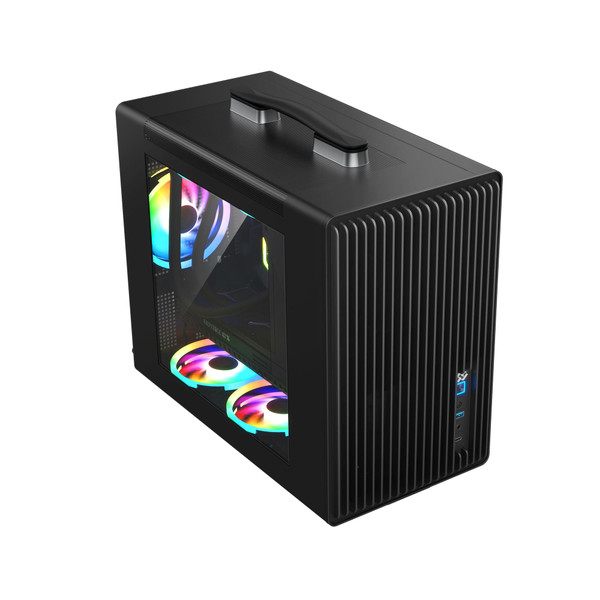

Front and Left Side View

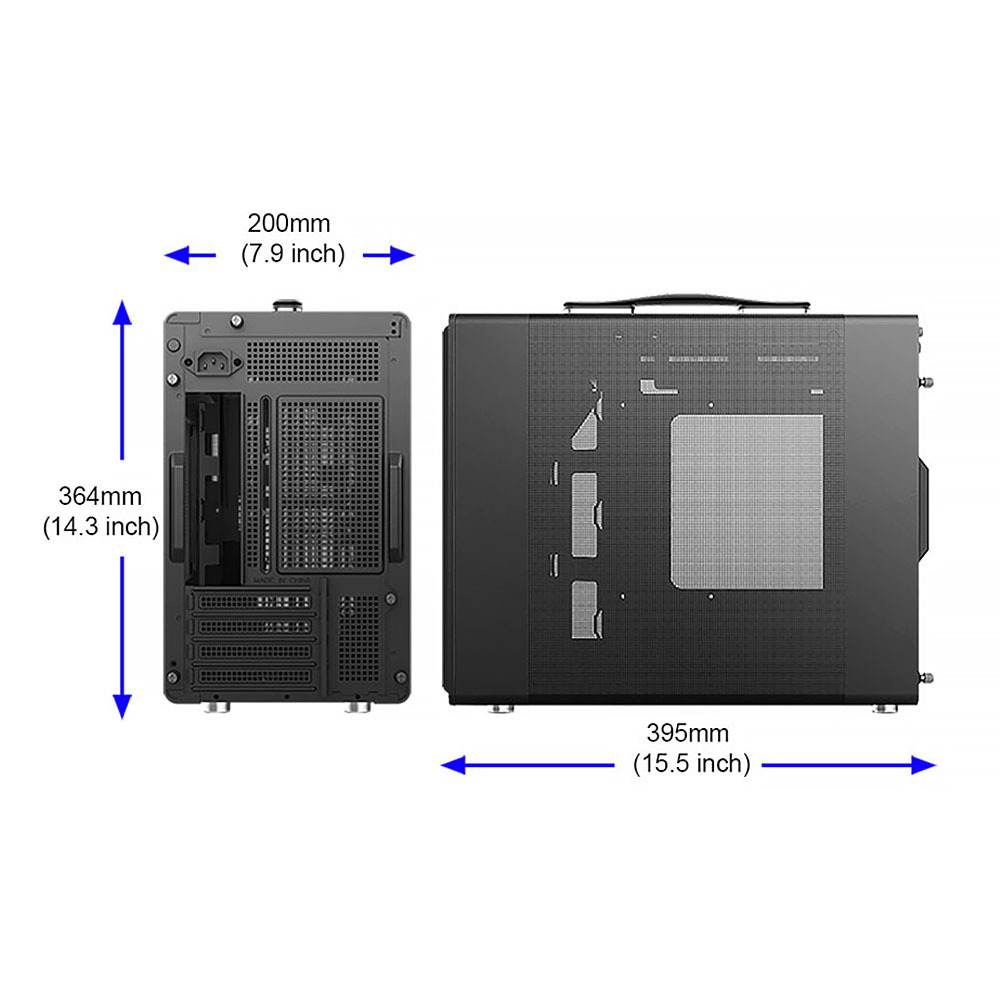

Rear and Right Side View

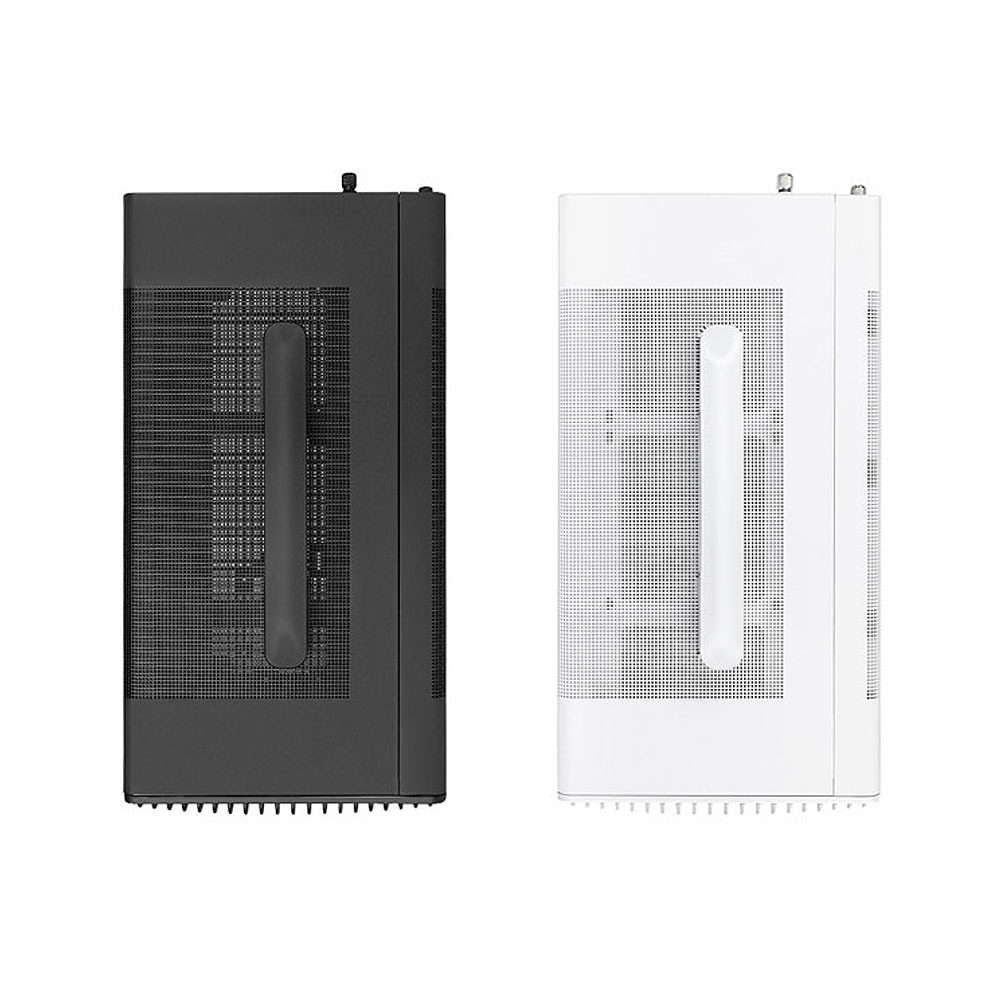

Top View (Black and White)

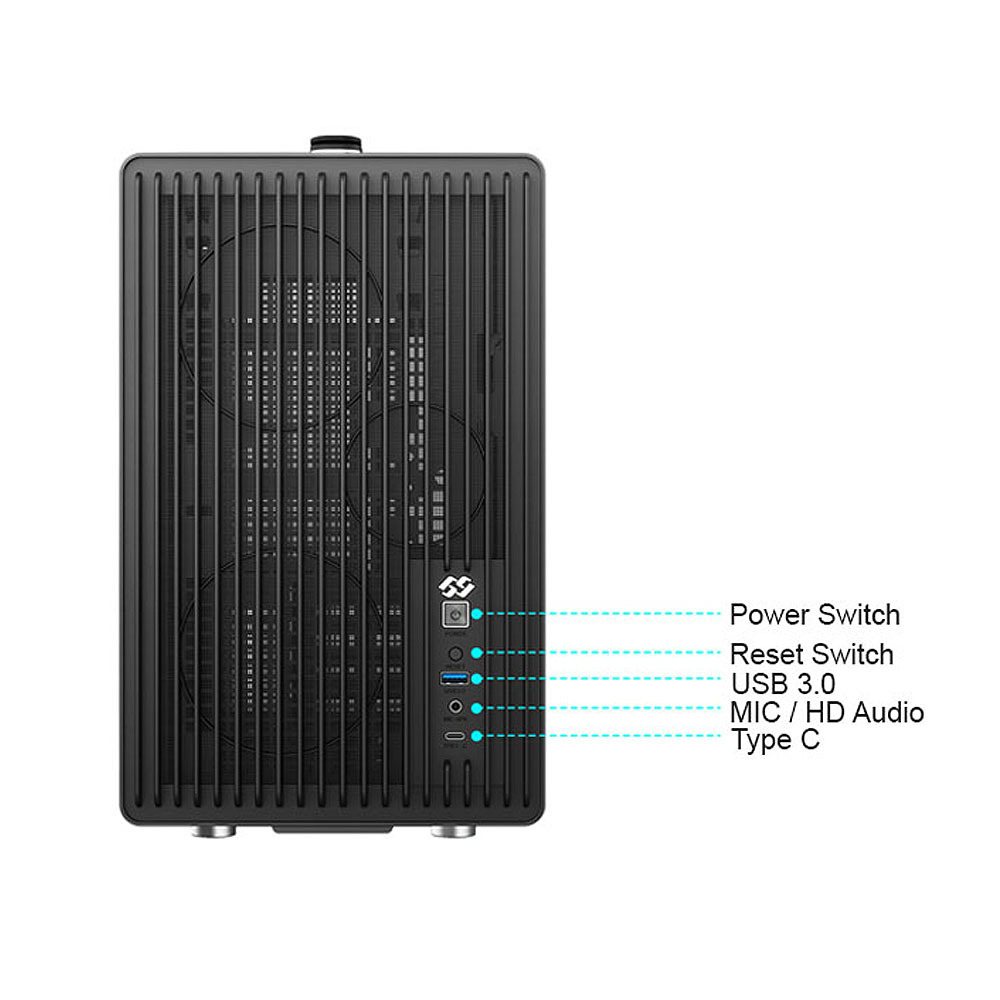

Front I/O Ports

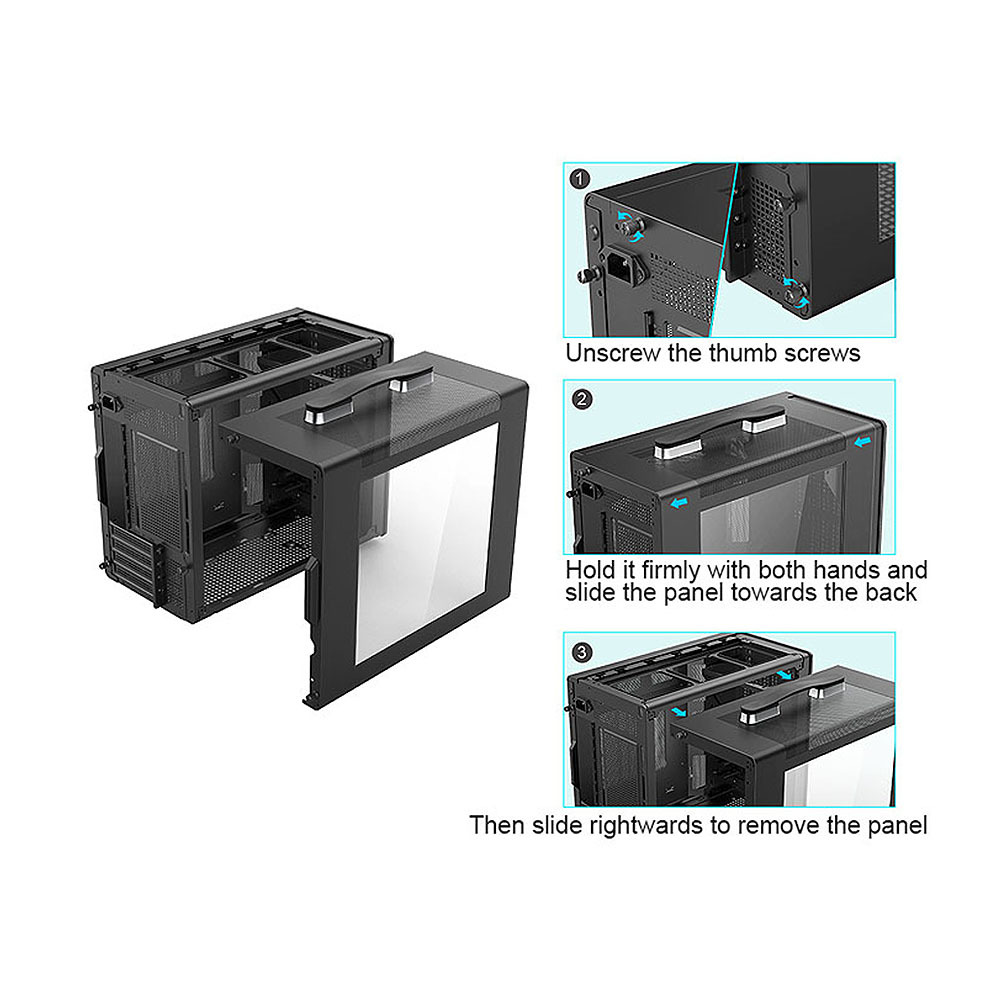

Remove the Top and Tempered Glass Panel

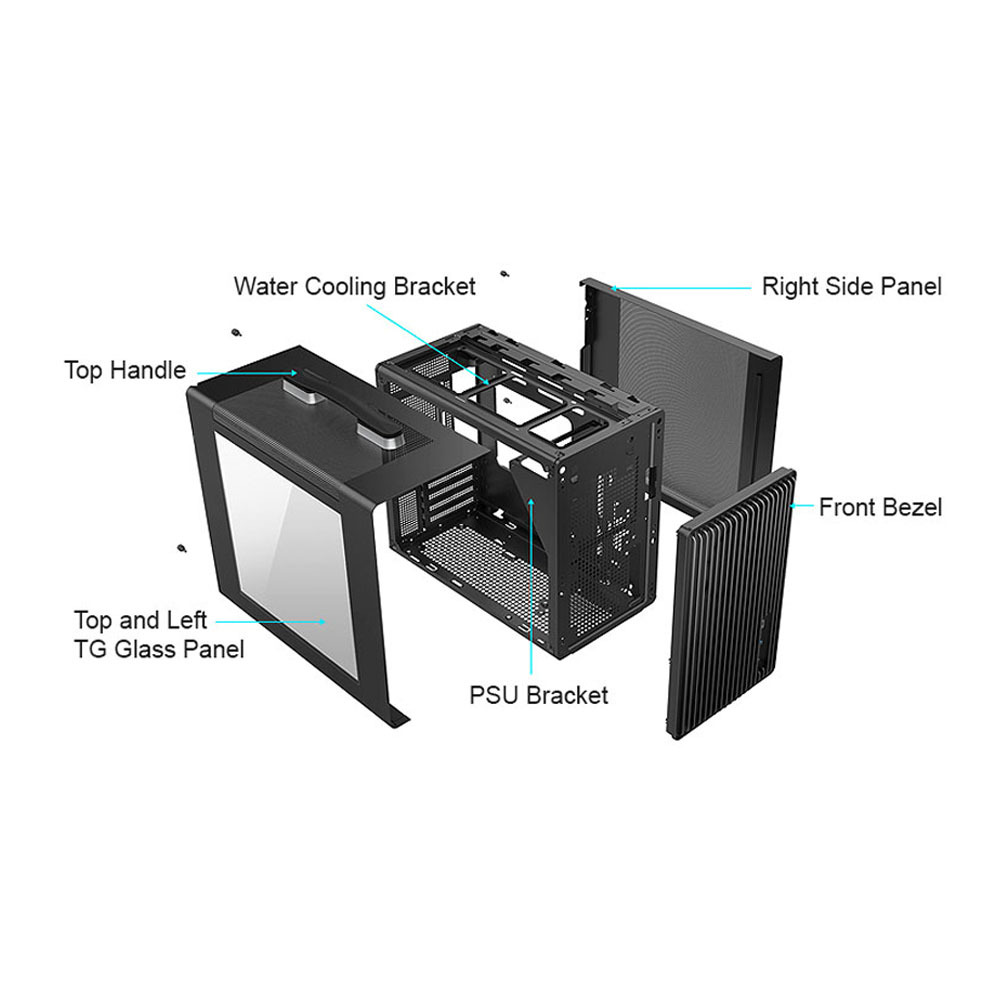

Exploded View

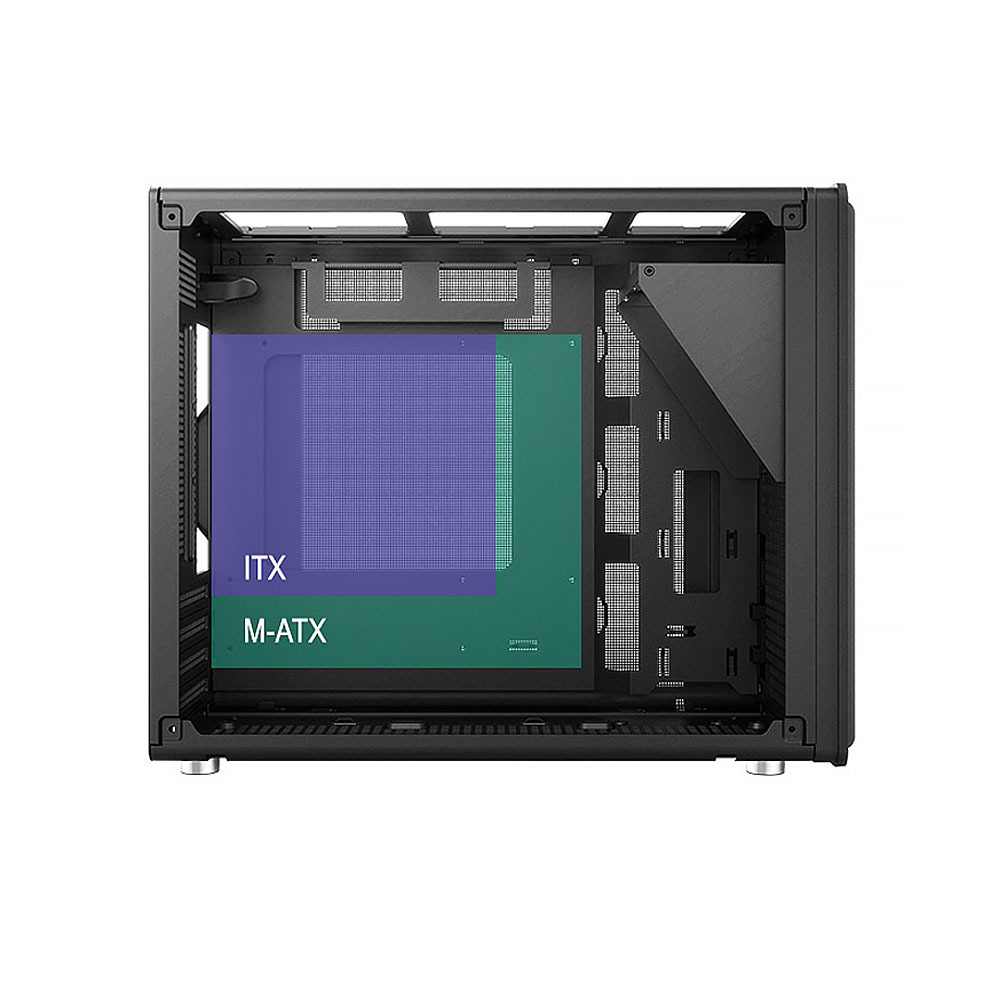

Motherboard Compatibility

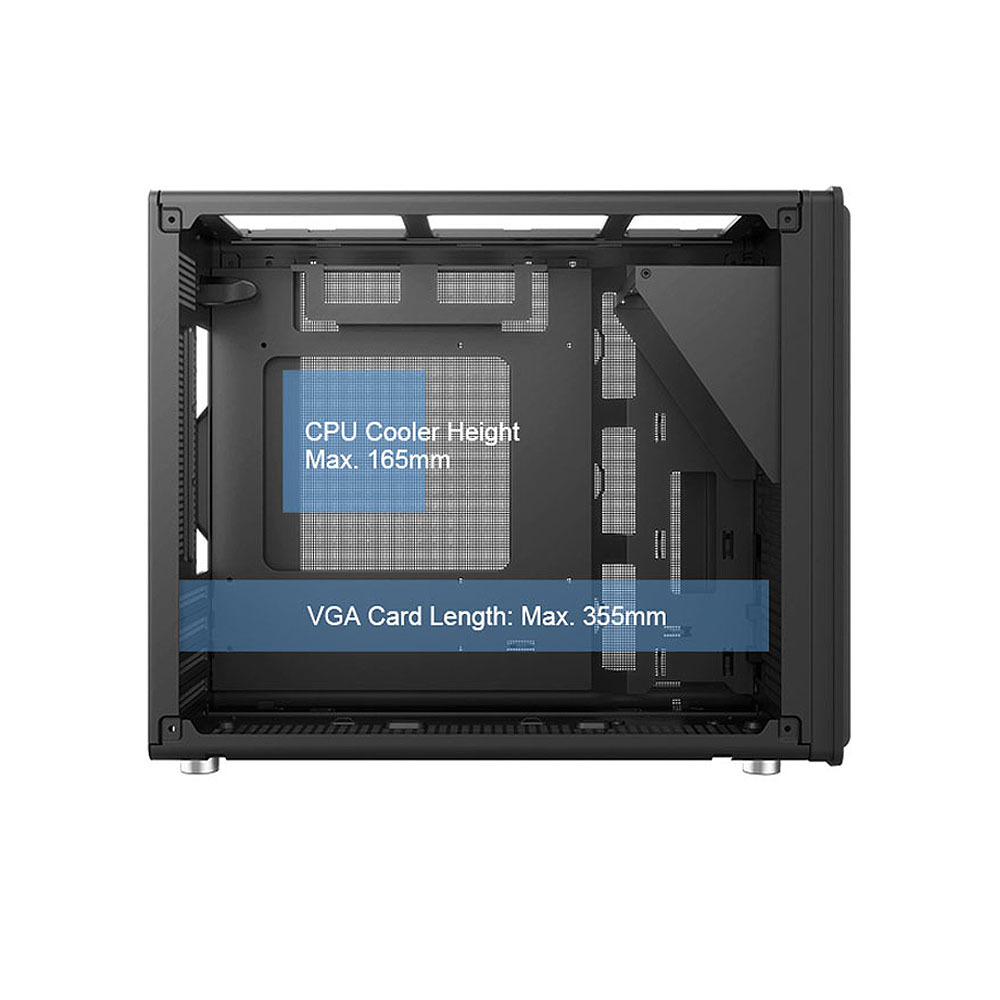

Graphic Card and CPU Cooler

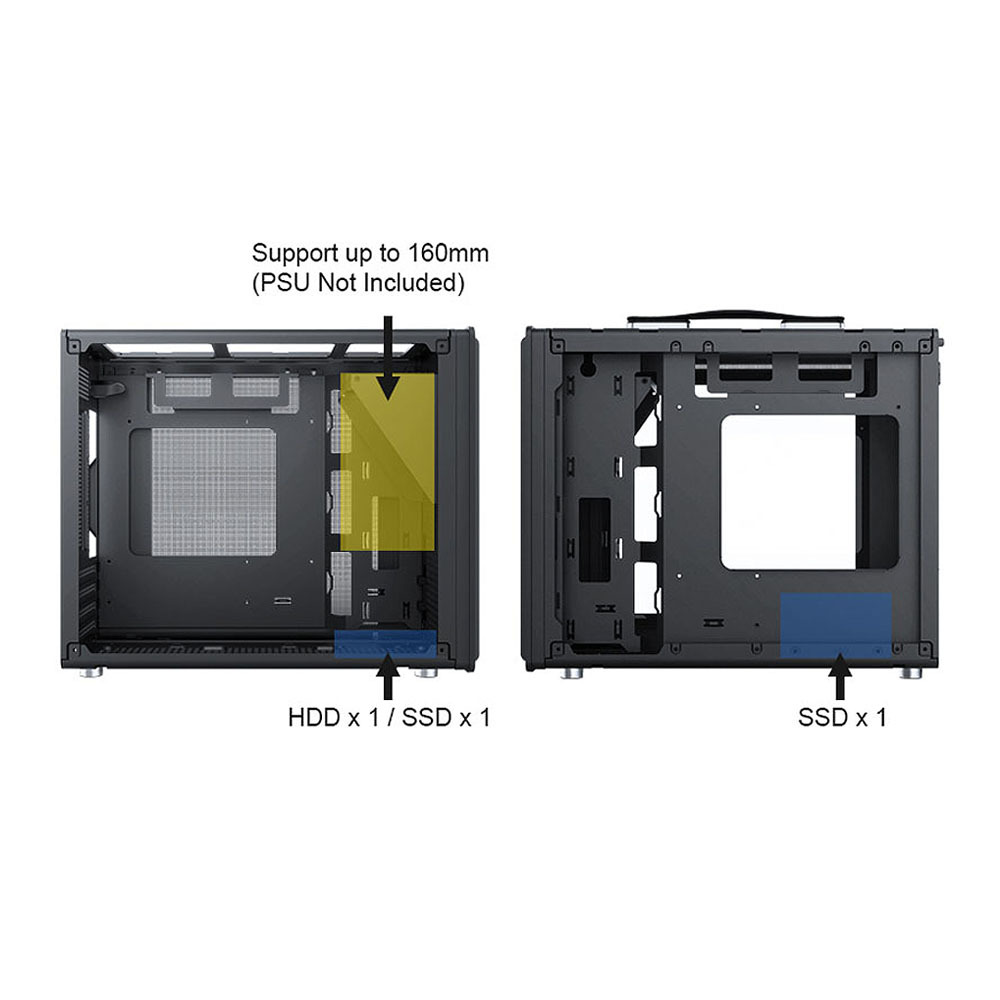

HDD / SSD Bays & PSU Position

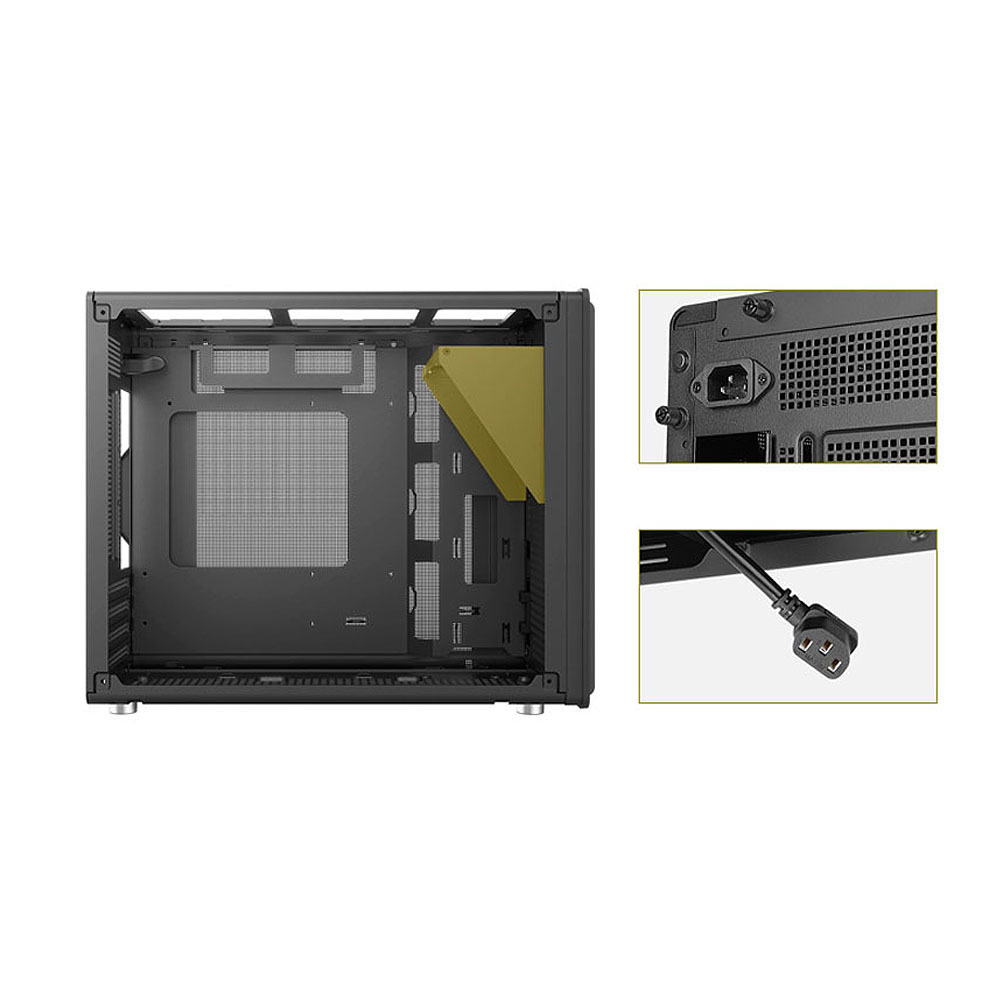

Power Supply Bracket

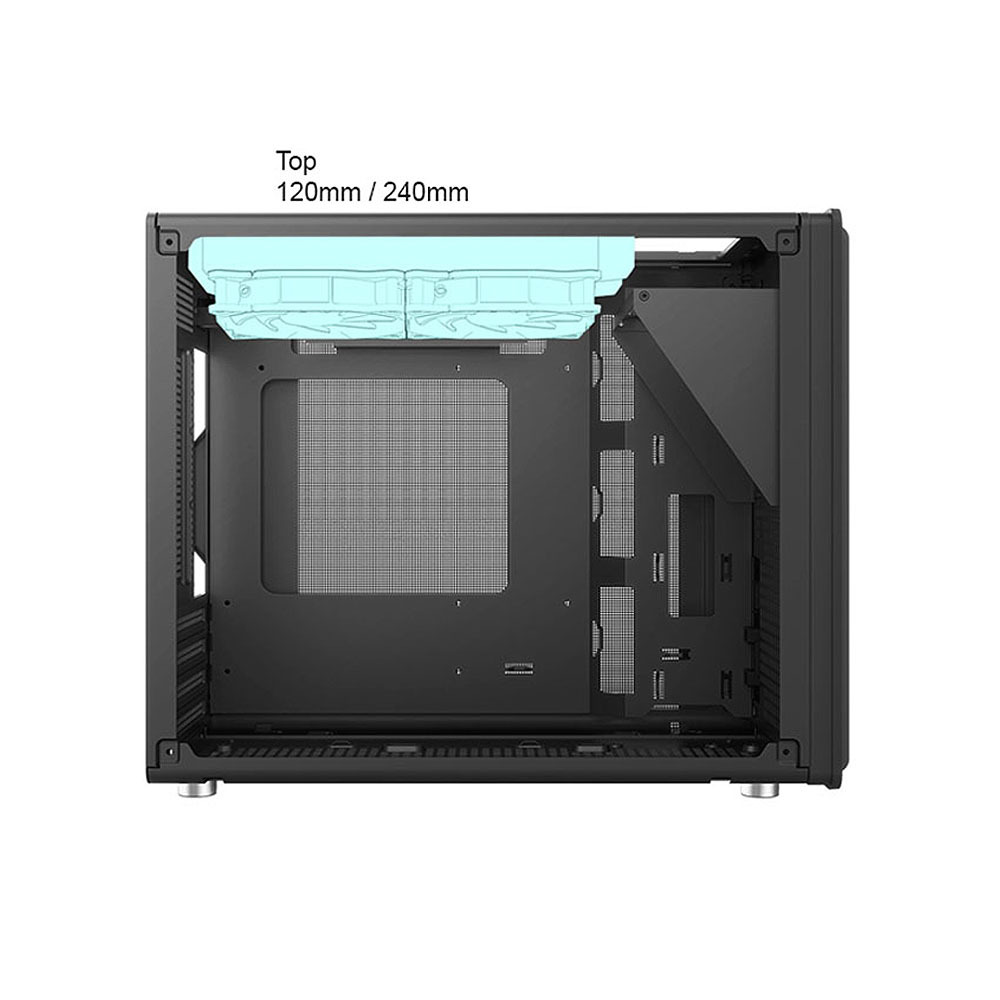

Water Cooling Support

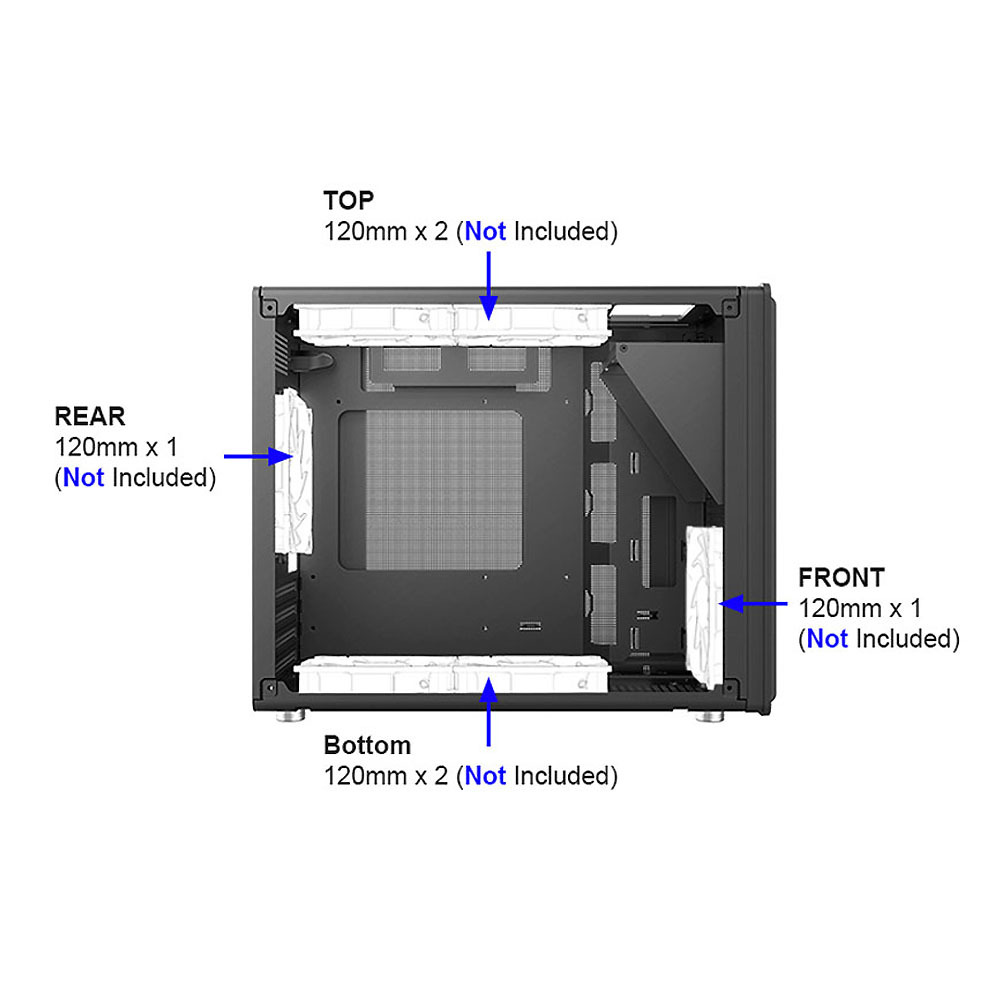

Fan Installation
Warranty Information
The warranty is valid for one year from the purchase date. The warranty includes coverage for defects that occur during normal use.
Products that are out of warranty, improperly installed, used in atypical conditions, or modified without proper approval do not qualify for warranty coverage.
