Product Overview
The Bluegears b‑Pellucid ATX features a crystal‑clear infinity tempered‑glass design, support for up to 10 fans, and a spacious slim mid‑tower layout that fits GPUs up to 420mm and radiators up to 360mm. Includes USB‑C, USB 3.0, and removable magnetic dust filters. Supports ATX, MicroATX, and Mini‑ITX motherboards. Fans sold separately.
Specifications and Features:
This product features a detailed specification and a range of functionalities, all clearly illustrated in the photo section.
- Product Name: b-Pellucid ATX (Product details and more photos)
- UPC Code:853704001763
- Product Number: BG01763
- Case Type: ATX Tower
- Chassis Thickness: 0.6mm Black interior

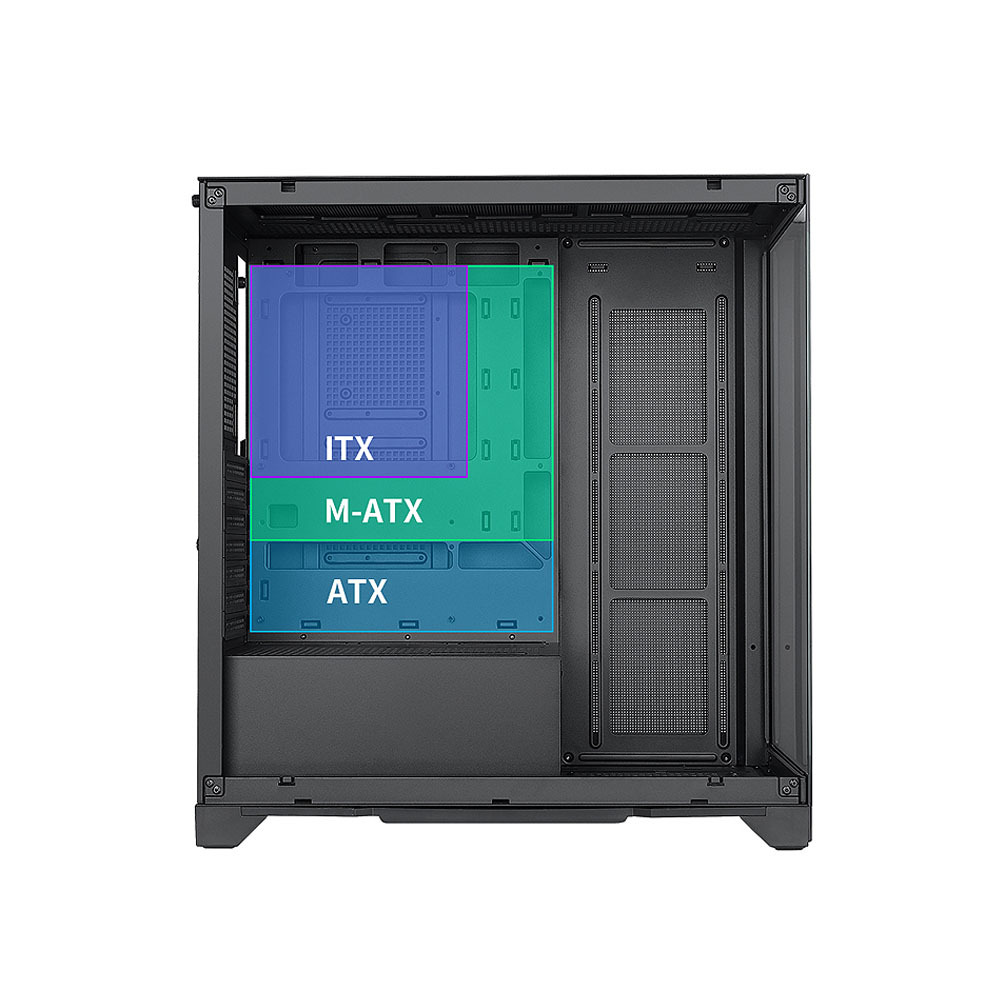

- Motherboards: ATX/Micro-ATX/ITX
- Dimension (Internal): 245(W) x 431(D) x 445(H) mm (=9.65 x 16.97 x 17.52 in)

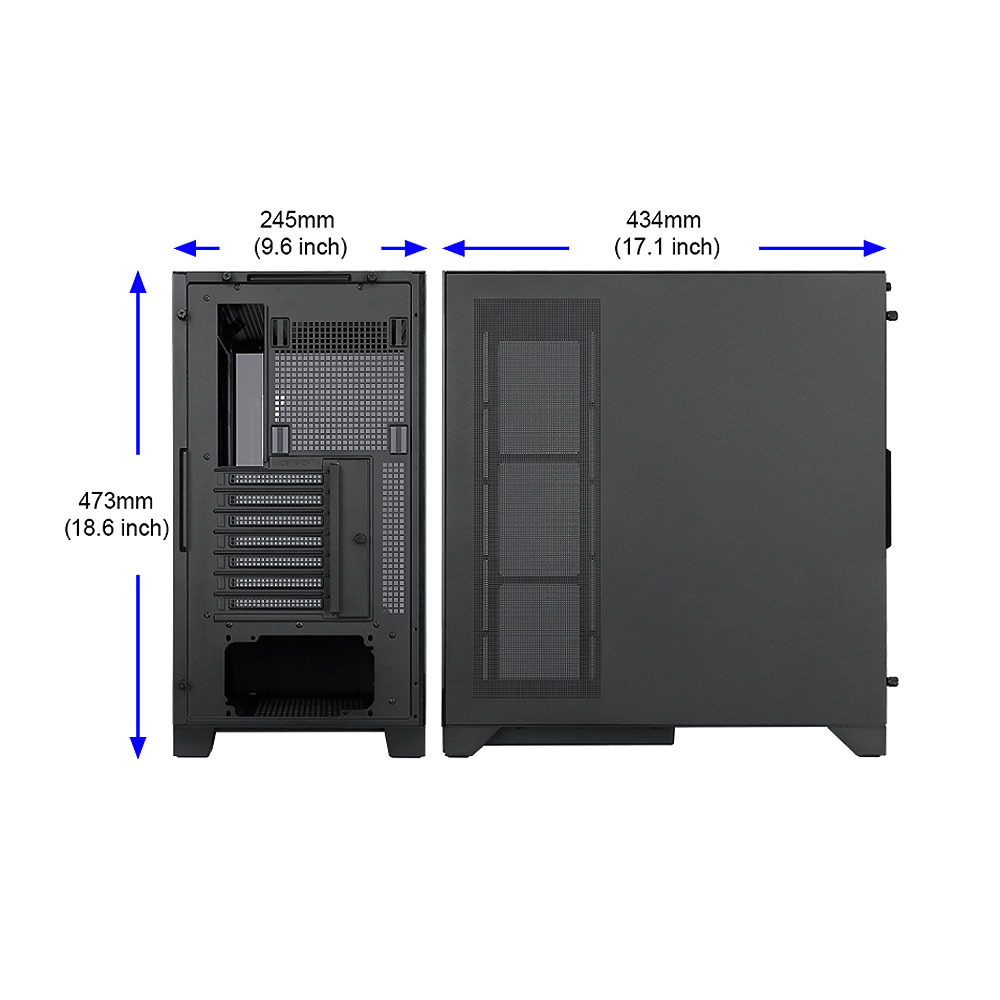

- Dimension (Overall): 245(W) x 434(D) x 473(H) mm (=9.65 x 17.09 x 18.62 in)

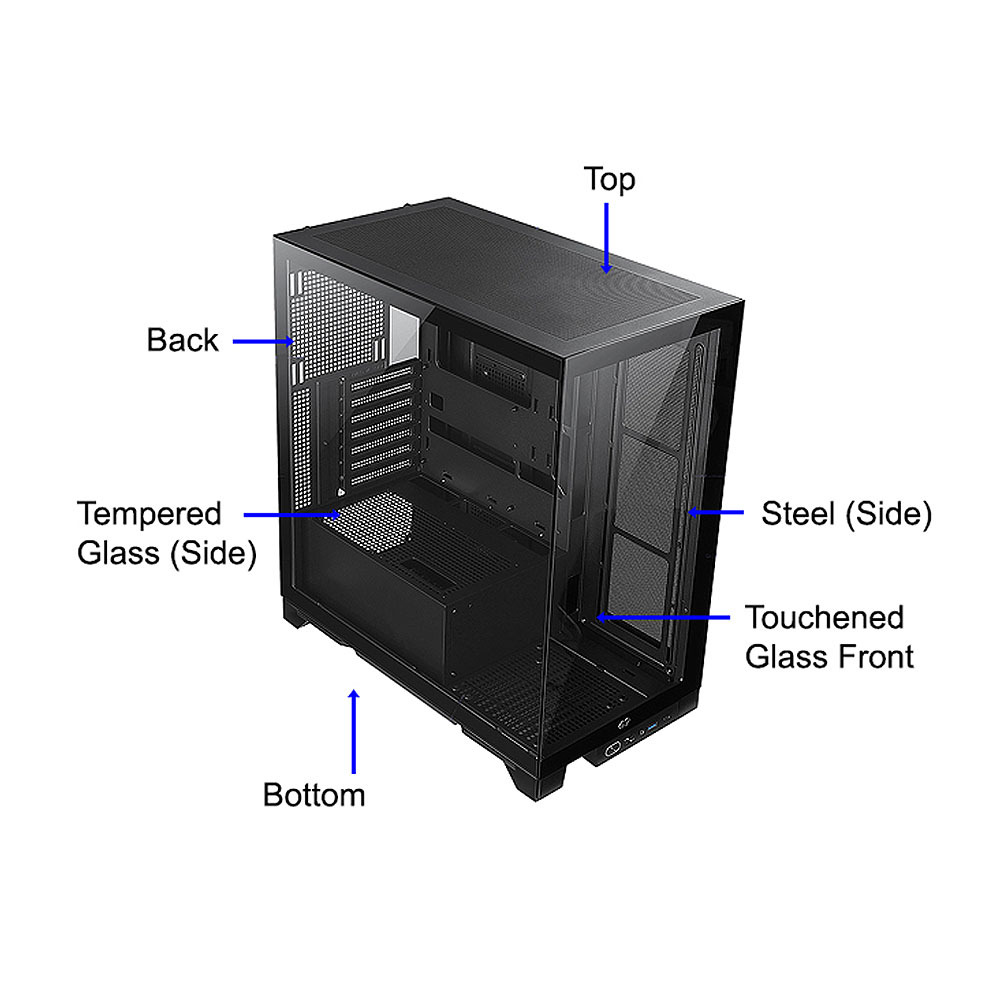

- Front Panel: Tempered Glass
- Side Panel Left: Tempered Glass
- Side Panel Right: Steel

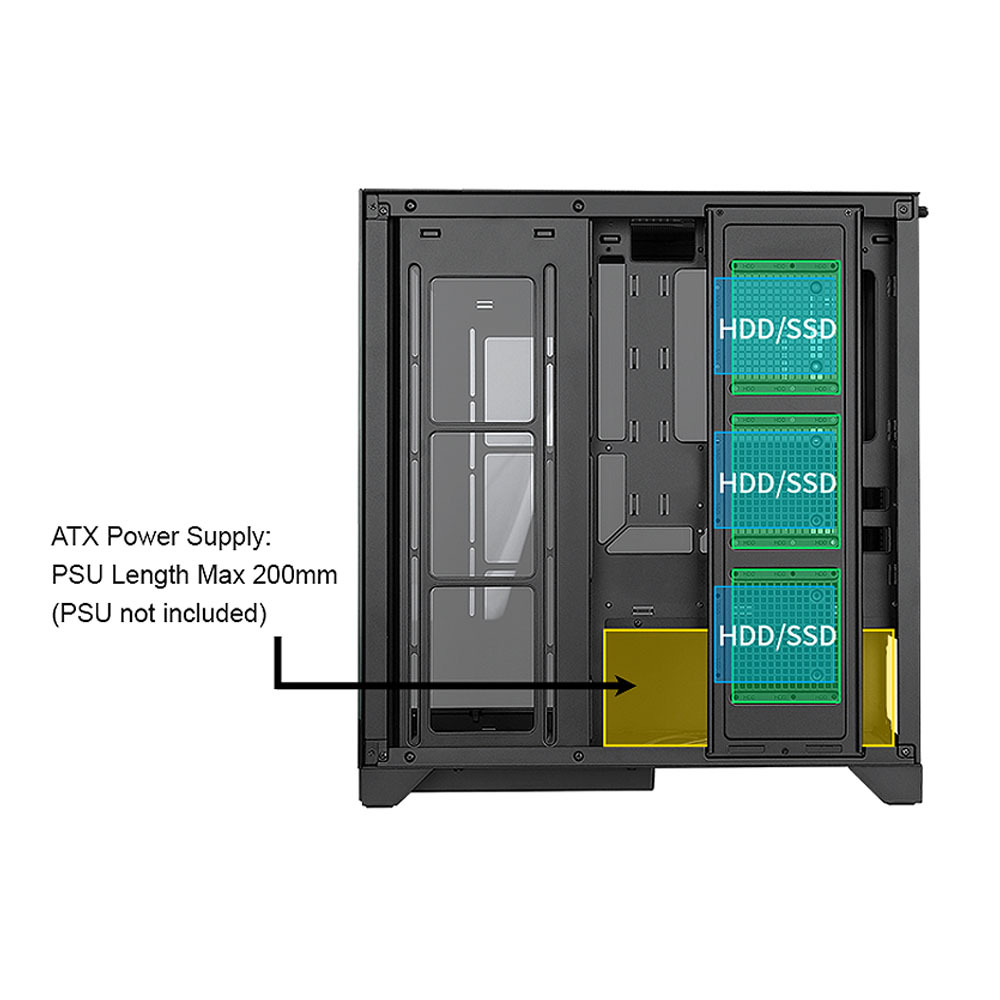

- Drive Bay: 3 x 3.5” HDD or 3 x 2.5” SSD
- I/O Port: USB 3.0 + Type C / MIC / HD Audio

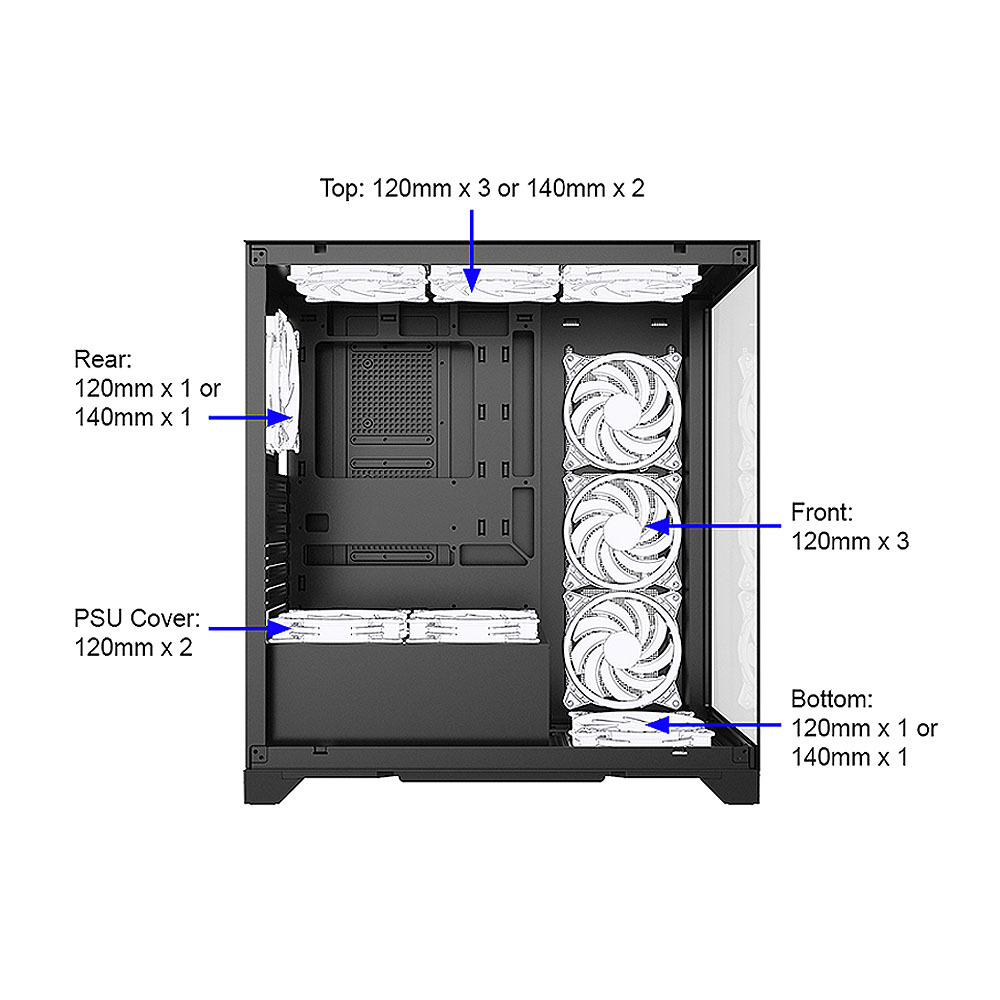

- Fan Top: 3 x 120mm or 2 x 140mm (Not included)
- Fan M/B Front: 3 x 120mm (Not included)
- Fan Rear: 1 x 120mm or 1 x 140mm (Not included)
- Fan Bottom: 1 x 120mm or 1 x 140mm (Not included)
- Fan PSU Cover: 2 x 120mm (Not included)
- CPU Cooler Height: Max. 185mm

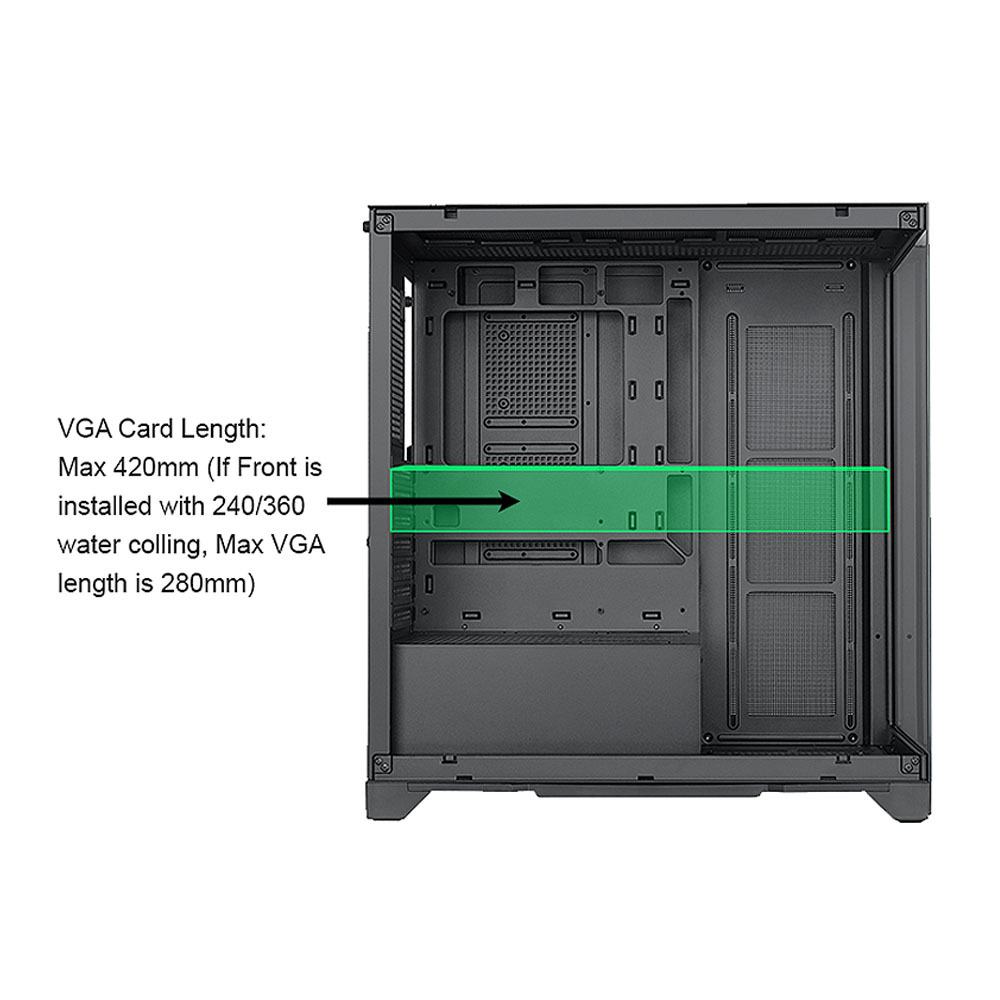

- VGA Card Length: Max. 420mm (If the motherboard tray/front area is installed with a 240mm or 360mm radiator, max VGA is 280mm)

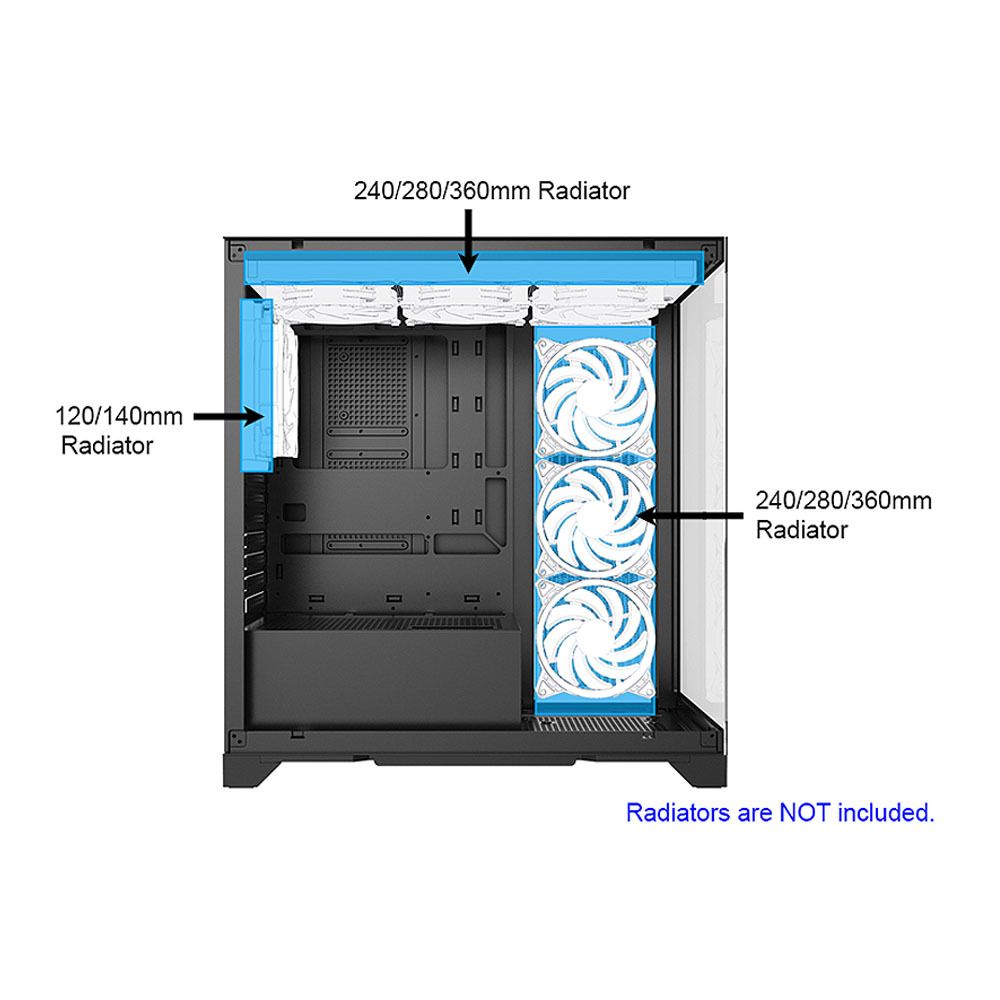

- Water Cooling: front 120/240/360mm, top 240/280/360mm, rear 120mm/140mm (All Not Included)
- Dust Cover: Bottom Drawer‑Style Dust Filter
- PCI Expansion Slots: 7
- PSU Compatibility: PSU length max 200mm (Not Included)
Warranty Information
The warranty is valid for one year from the purchase date. The warranty includes coverage for defects that occur during normal use.
Products that are out of warranty, improperly installed, used in atypical conditions, or modified without proper approval do not qualify for warranty coverage.
